     Thru-wall Level Sensor Series

    CS093-1-L.H   MCU Thru-wall Level Alarm


CS093-1-L

CS093-1-L

CS093-1-H

CS093-1-H

Feature


1.Microcontroller Unit detects different dielectric constant of the nonmetal
   glass or acrylic vessel and liquid, then alarm the Hi or Low liquid level.
2.LED color indicates the Hi or Low liquid level.
3.Universal power supply ¡£100¡ã240VAC¡¤.
4.Design for reducing wave interference.
5.Easy to install the sensor by adhesive tape or strapped wire.

Technical Specifications

Model  CS093-1-L.H
Supply voltage  7¡ã24VDC
Current supply
¡£alarm switching
on state¡¤
 max 90mA
Switching current  3.3¡ã40mA
Maximum
switching frequency
 1Hz
Ambient
temperature range
 -15¡ã+60¢XC
Thickness of
the vessel wall
 2¡ã15mm
Protection class  IP 64 or IP 67
Measurement
¡£mm¡¤
 Width36 x Height65 x Deep18



CS093-1-L DIRECTIONS Download
CS093-1-H DIRECTIONS Download

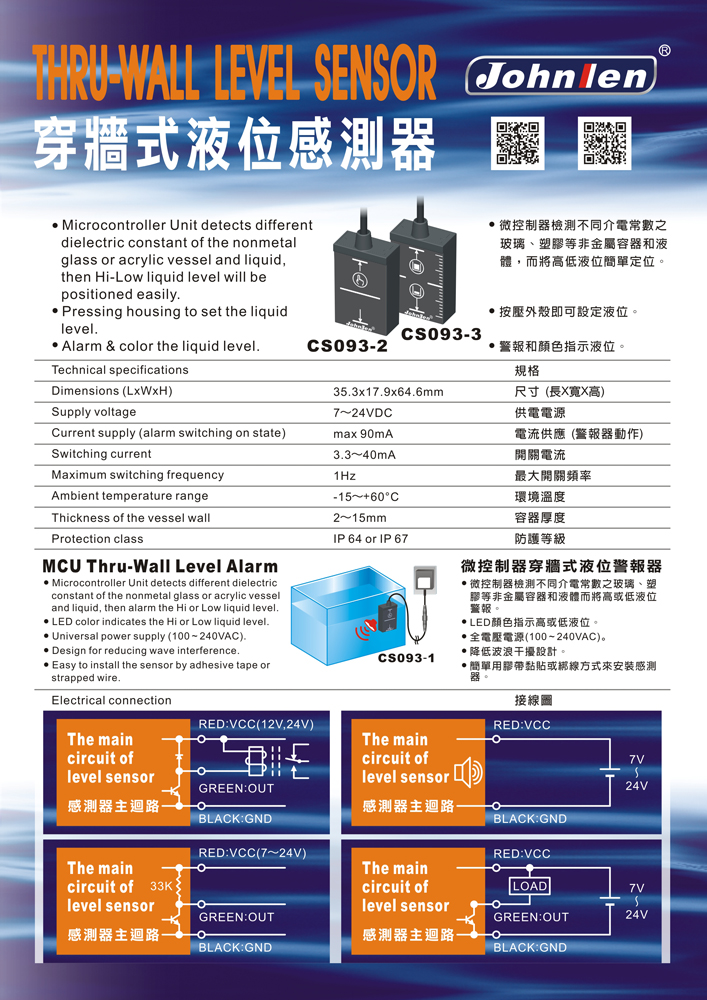

CS093 SENSOR DM Download





    CS093-2-L.H   Thru-wall Single Level Sensor


CS093-2-L
CS093-4-L

CS093-2-H
CS093-4-H

Feature

1.Microcontroller Unit detects different dielectric constant of the nonmetal
   glass or acrylic vessel and liquid, then Hi-Low liquid level will be positioned
   easily.
2.Pressing housing to set the liquid level.
3.Alarm & color the liquid level.

Technical Specifications

Model  CS093-2-L.H
Supply voltage  7¡ã24VDC
Current supply
¡£alarm switching
on state¡¤
 max 90mA
Switching current  3.3¡ã40mA
Maximum
switching frequency
 1Hz
Ambient
temperature range
 -15¡ã+60¢XC
Thickness of
the vessel wall
 2¡ã15mm
Protection class  IP 64 or IP 67
Measurement
¡£mm¡¤
 Width36 x Height65 x Deep18



CS093-2-L DIRECTIONS Download
CS093 SENSOR DM Download






Electrical connection


    CS093-3-L.H   Thru-wall Double Level Sensor


CS093-3-L
CS093-3-L

CS093-3-H
CS093-3-H

Feature

1.Microcontroller Unit detects different dielectric constant of the nonmetal
   glass or acrylic vessel and liquid, then Hi-Low liquid level will be positioned
   easily.
2.Pressing housing to set the liquid level.
3.Alarm & color the liquid level.

Technical Specifications

Model  CS093-3-L.H
Supply voltage  7¡ã24VDC
Current supply
¡£alarm switching
on state¡¤
 max 90mA
Switching current  3.3¡ã40mA
Maximum
switching frequency
 1Hz
Ambient
temperature range
 -15¡ã+60¢XC
Thickness of
the vessel wall
 2¡ã15mm
Protection class  IP 64 or IP 67
Measurement
¡£mm¡¤
 Width36 x Height65 x Deep18
Electrical connection

 Relay circuit

 Output voltage circuit

 Open collector circuit





CS093-3-L.H DIRECTIONS Download
CS093 SENSOR DM Download
